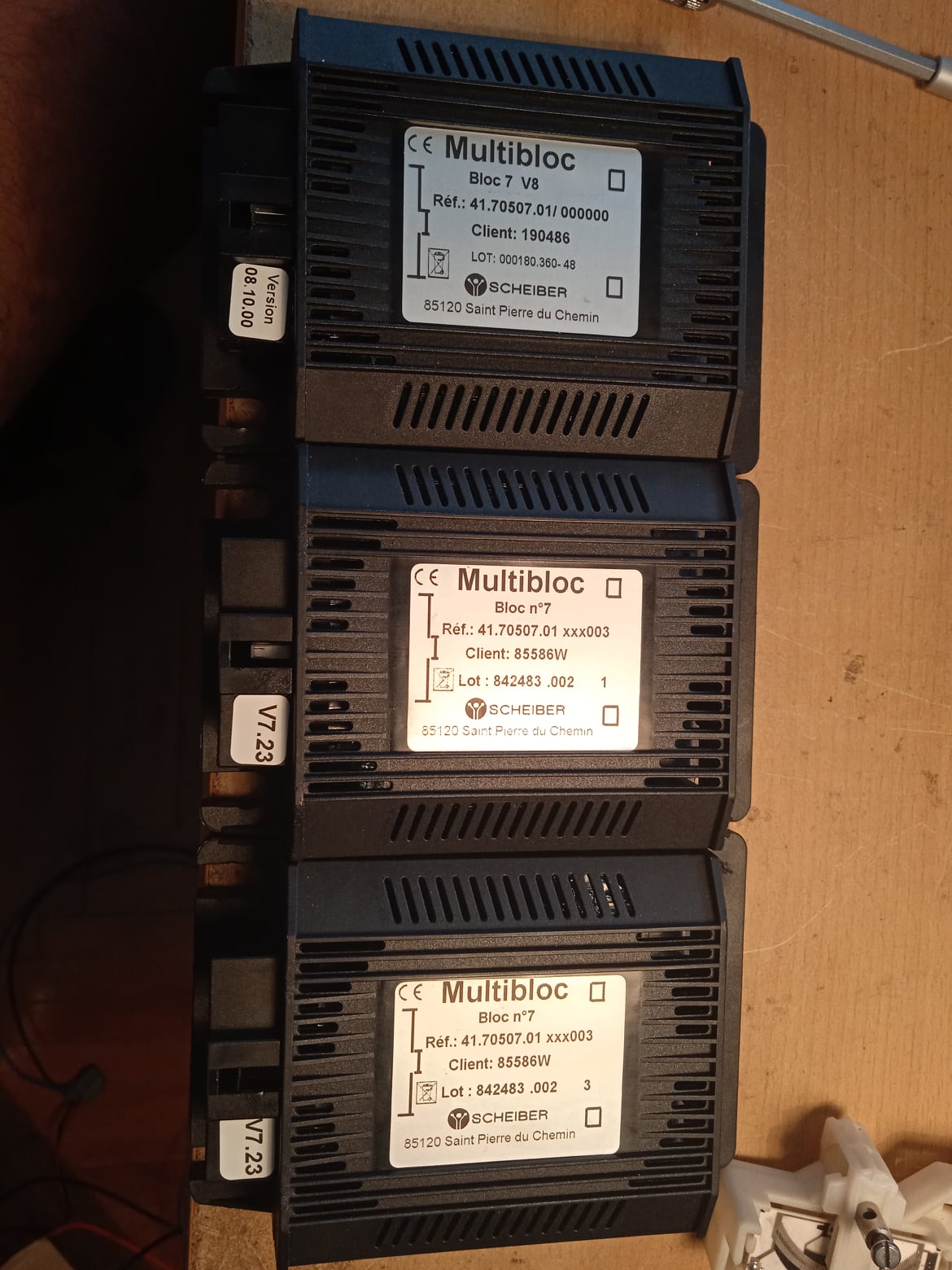

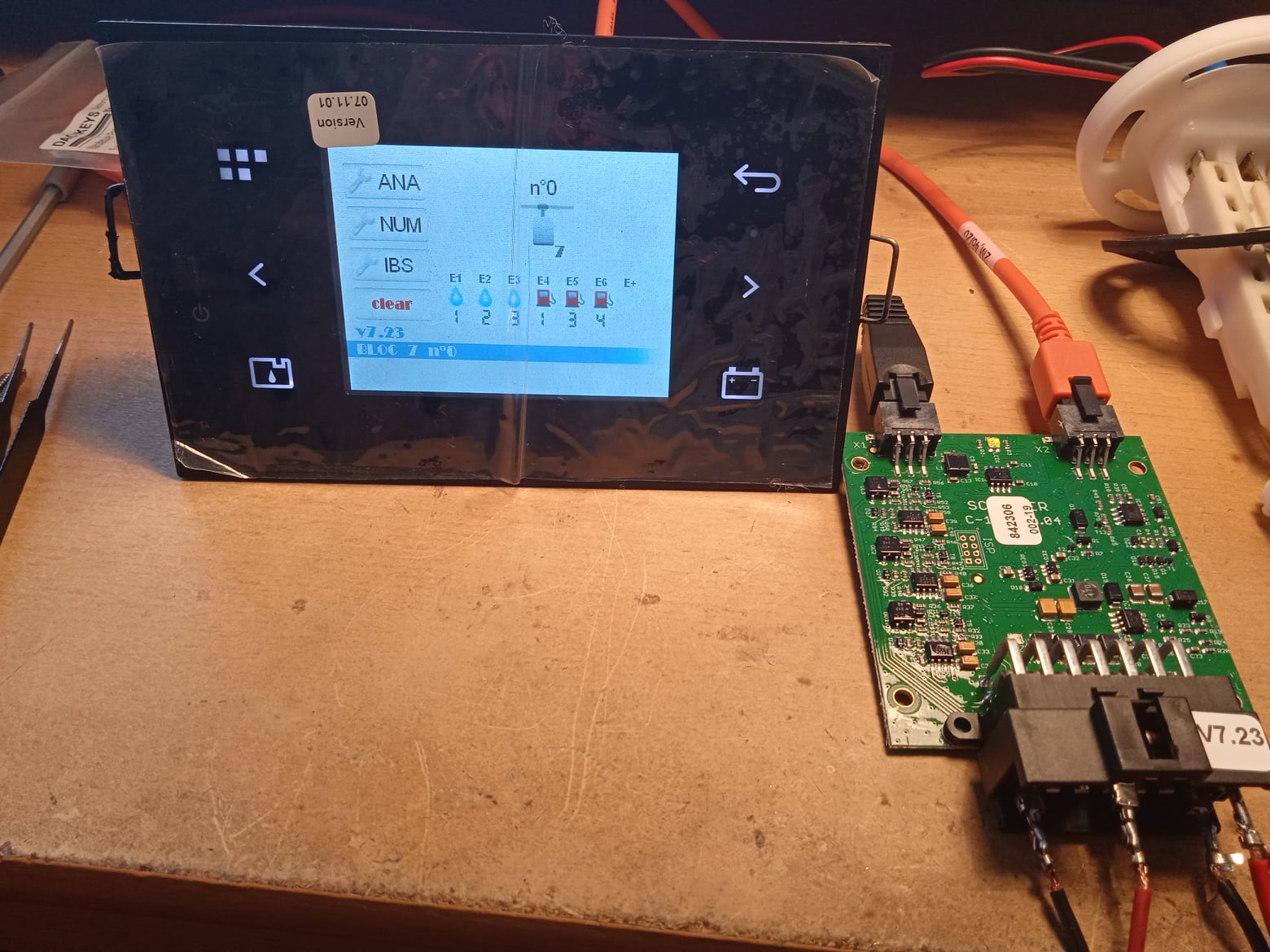

Scheiber bloc 7 modules on repair

They allow the measurement of:



- voltages between 0 and 30 VDC in order to acquire analog measurements (battery voltage)

- voltages between 0-10 VDC (sensor voltage).

- water levels (fresh water, gray water, black water, fuel) by configuring the input as a current generator.



Bloc 7 also integrates 3 digital inputs to view the state of sensors (bilge pump).

Via the LIN Bus you can add up to 6 IBS sensors.
